ANT-915CP-0.5

• Operational Frequency 902-928MHz

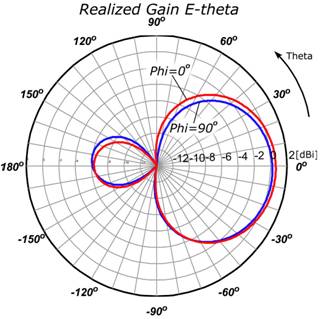

• Maximum Gain +1.1dBi
• Right Hand Circular Polarized (RHCP)
• Axial Ratio 0.9dB
• VSWR less than 1.30
• Size 2.80"x2.38"x0.60" (71.1mmX60.5mmX15.2mm)
• RF connector Right Angle Plug MMCX

AWID's ANT-915CP-0.5 is optimized for frequency band 902-928MHz.
Optimization results are positive realized gain, low axial ratio of radiation and high return loss over operational frequency band achieved within small volume with linear size less than 1/4 of wavelength.

Features

• Maximum achieved realized gain and frequency bandwidth within moderate volume.
• Variation of the Maximum Gain is less than ±0.8dB in Z direction at any Phi angle within operational frequency band.
• Variation of the Maximum Gain is less than ±0.5dB within the frequency band 876-973MHz at the fixed Phi angle.
• It provides very low reflection of the transmitter signal into receiver. The return loss is more than 24dB.
• Light – weight is 482g or 17oz.

Benefits

• The antenna is intended for application with RFID mono-static interrogator architecture and it provides better interrogation rate and range because of very low VSWR.
• Antenna provides uniform electromagnetic field, which guaranties the stability of tag interrogation at any position.
• Size, weight and gain of the antenna are optimized for stationary applications.
• It may be employed for indoor installations.
