CSR-522QR

• SIZE 6.26”x4.05”x1.05”
• RF POWER up to 0.5W
• FREQUENCY 902MHz to 928MHz (FHSS)
• ANTENNAS 4 RP-SMA (VSWR < 1.15)
• INTERFACE +12V DC, RS-232, 2 GPI, 2 GPO
• READ RANGE 30'

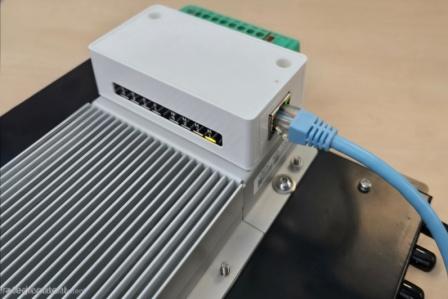

CSR-522QR with ANI-522-2-2 and ASP-522-4-32

CSR-522QR is a Compact, Smart Radio Frequency Identification (RFID) Reader that works with most leading passive UHF passive tags. It is a device of 4-to-32(*)-antenna, RS-232 interface and with the option of an add-on board (ANI-522-2-2) of general purpose digital I/O (GP I/O - two (2) input two (2) outputs) for the Network interface.

CSR-522QR comes with a unique combination of long read range (35' to 50') and low power consumption and can be configured to output either MPR or TLR format when processing the tags. In MPR format, its primary applications are asset management & tracking, and fleet management applications. The TLR format supports myriad applications in Automatic Vehicle Identification (AVI) and Access Control including gate access, parking, etc.

 (*)  An antenna expansion module (APS-522-4-32) can be connected to the 4 antenna ports to provide coverage by up to 32 antennas.

Features

• Multi protocol capability including ISO 18000-6 C and EPC Gen 2
• Four (4) ports for wide range antennas for selecting different applications
• Add-on GPIO 2-input, 2-output module
• Low power consumption
• Splash proof design for indoor or outdoor applications
• Easy communications protocol

Benefits

• Make data collection and filtering easy
• Expandable for your application
• Common connections make set-up a breeze
• Great for use in multiple tag environments
• Decrease your time to market
