XP-3620

SWITCHPLATE-MOUNT UHF READER

(Not recommend for new installations – Call AWID for availability)

• SIZE: 4.9" x 3.1" x 1.0"
• POWER SUPPLY:  +6 to +12 VDC
• INTERFACES:  Wiegand and RS-232 (simultaneous)
• MOUNTING:  Indoors/outdoors, on a single-gang utility box or wall surface
• CREDENTIALS:  AWID’s uAxcess cards/tags

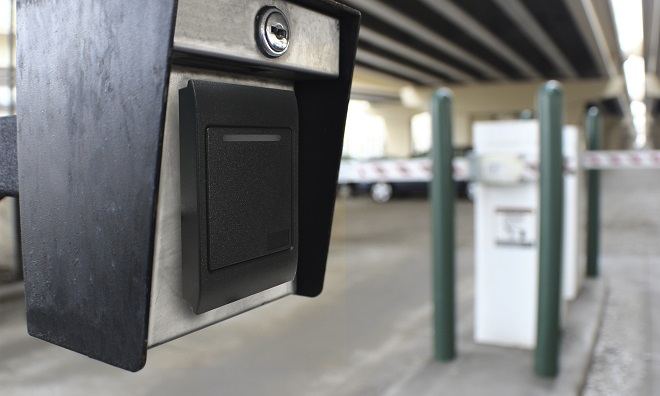

The XP-3620 Reader is a near-field partner for AWID’s UHF long-range readers, using the same hand-held cards and tags. The XP-3620 can be mounted beside a door or turnstile.  Every card read is announced by the 2-color LED and beeper.  With its attractive design and durable construction, the XP-3620 is a good solution for both upscale residences and tough industrial environments.  Its read range of up to 6 inches assures single-card reads when pedestrian traffic is heavy.   The XP-3620’s quality and performance deliver high value in indoor and outdoor applications.

Features

• Read range up to 6 inches
• Mounts on single-gang box or wall
• Dual interfaces – Wiegand and RS-232
• Attractive enclosure, small size

Benefits

• Same card for cars at gates and people at doors
• Connects to the panel like a proximity reader
• Ready to work -- needs no programming
• Visible and audible feedback when card reads
